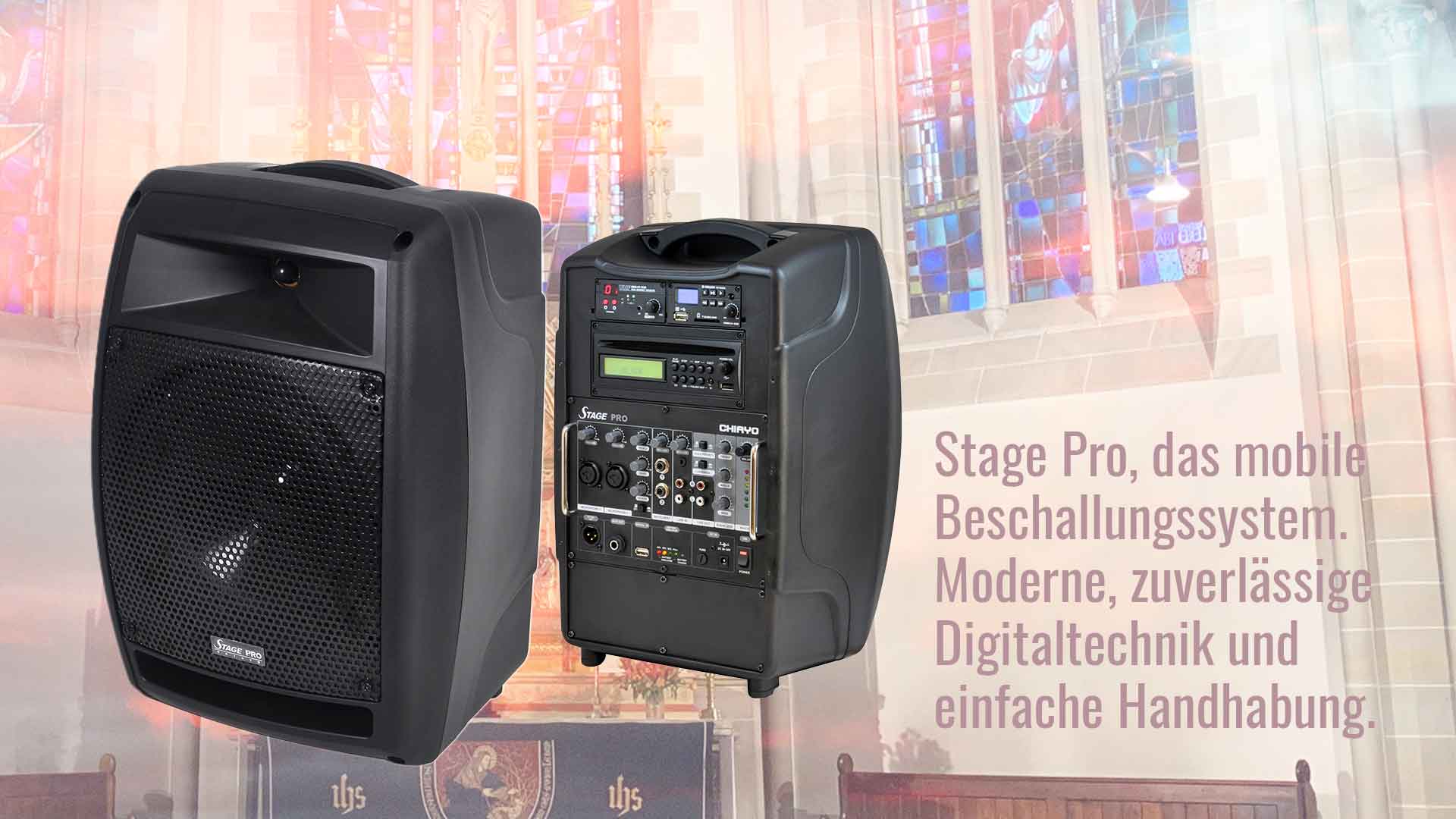

Stage Pro

Mobile sound system with multimedia player (CD/DVD/MP3) in digital sound perfection.

Stage Pro, the mobile sound system for highest demands.

Modern, reliable digital technology in an attractive design, comprehensive accessories and easy handling make this SET a PA system that also meets the high demands of professional applications.

Features that will delight everyone:

  • Digital amplifier – 200W
  • Multimedia player CD/DVD/MP3
  • Digital radio receiver 2.4GHz
  • Radio handheld microphone
  • Charger and Liion battery
  • Tripod with tripod bag
  • Remote control
  • Instruction manual
  • Accessories case
  • Weather protection bag (optional)
Download data sheet

Here you can find the technical data of the Stage Pro clearly arranged in a table:

Technical data Stage Pro

Max. Output power 200W at 4Ω (class-D)
Loudspeaker 8″ bass speaker + 1″ tweeter & active crossover (active two-way operation)
Audio inputs Mic in x 2 (COMBO XLR), Line in x 2 (RCA RCA and 3.5mm stereo jack), Instrument in x 2 (jack 6.35 mm), Active in (XLR), Digital in (USB)
Audio outputs Line out (R/L; Cinch), Active out (XLR)
T.H.D. < 0.5%
Freq. response 50Hz-20KHz±3dB
Antenna Bolted, removable for transport
Power supply 100-240V AC, 30-32V DC/4A
Battery Type Lithium
Battery data 29.4V/7.8A
Battery (quantity) 1
Operating performance 8-10 hours of music, >12 rounds of language
Loading time Approx. 8 hours
Dimensions in cm 42.4(H) x 29(W) x 25(D)
Weight (kg) 9.5

More details about the functionality:

  • Ruggedly built compact ABS speaker cabinet
  • 200W Class-D amplifier
  • 8″ woofer and 1″ tweeter with active crossover
  • Extension to 2nd radio link possible (optional)
  • Scan and sync button for quick and easy microphone channel setup
  • MIC IN 1 and 2 are XLR/ 6.3 mm combo jacks for microphone input with individual volume control
  • INSTRUMENT IN provides two 6.3 mm phone jacks for two instrument inputs
  • LINE IN (RCA L/R RCA & 3.5 mm stereo jack ) with volume control
  • DIGITAL IN (USB 2.0) enables playback of audio files directly from the computer via USB cable
  • ACTIVE IN/OUT (XLR sockets) for master-slave expansion (up to 20 devices!!)
  • LINE OUT (RCA L/R jack) for external audio recording
  • 2-band equalizer (BASS / TREBLE) for wired microphones
  • 3-band equalizer (BASS / MIDDLE / TREBLE) for music
  • VOICE PRIORITY automatically suppresses music as soon as the microphone is used (switchable)
  • REVERB with bypass for wired and wireless microphones (switchable)
  • LOUDNESS function enhances bass/treble performance (switchable)
  • Digital limiter prevents playback distortion, with 6-level LED audio meter display
  • Intelligent charging circuit with 4-stage LED battery indicators and charging LED
  • User-friendly battery compartment design for easy battery replacement
  • More than 10 hours operating time
  • Power supply via Li Ion battery or/and mains connection
